| WS2812B 8x8 LED Grid |
Arduino library for controlling one or more Soldered WS2812B 8×8 LED grids using a simple (x, y) coordinate system. Multiple panels can be chained horizontally and/or vertically and addressed as a single continuous grid. Part of the Qwiic ecosystem.
(x, y)coordinate API, no manual index calculation needed- Supports single 8×8 panels and multi-panel arrangements
- Multi-panel chaining: columns of panels are chained first (top→bottom), then the next horizontal column
- Per-pixel RGB or packed-color control
- Full-grid fill, brightness control, and pixel readback
- Based on the Soldered WS2812 / Adafruit NeoPixel driver

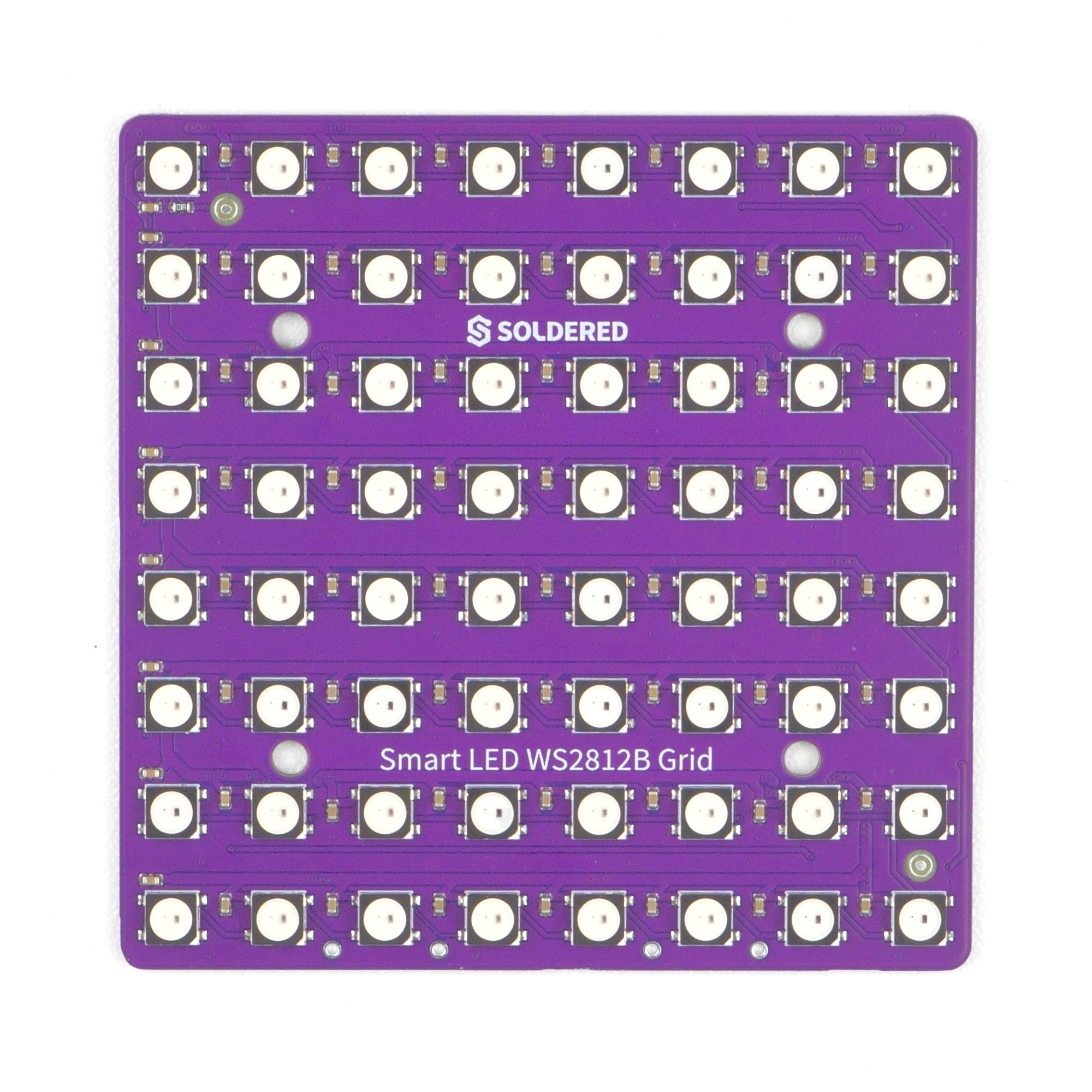

Each panel is an 8×8 WS2812B grid with internal serpentine wiring:
- Even rows (0, 2, 4 …) run left → right
- Odd rows (1, 3, 5 …) run right → left
When chaining multiple panels, they are connected column-first:
Single panel (8×8): Two panels wide (16×8):
┌────────┐ ┌────────┬────────┐
│ Panel 0│ │Panel 0 │Panel 1 │
│ LEDs │ │LEDs │LEDs │
│ 0–63 │ │0–63 │64–127 │
└────────┘ └────────┴────────┘
Two panels tall (8×16): 2×2 arrangement (16×16):
┌────────┐ ┌────────┬────────┐
│ Panel 0│ │Panel 0 │Panel 2 │
│ LEDs │ │LEDs │LEDs │
│ 0–63 │ │0–63 │128–191 │
├────────┤ ├────────┼────────┤
│ Panel 1│ │Panel 1 │Panel 3 │
│ LEDs │ │LEDs │LEDs │
│ 64–127 │ │64–127 │192–255 │
└────────┘ └────────┴────────┘
Connect the data-out pin of the last panel in each column to the data-in of the first panel in the next column.
| Method | Description |
|---|---|
WS2812Grid(pin, width=8, height=8) |
Construct grid driver. width and height must be multiples of 8. |
begin() |
Initialize driver, blank display, call once in setup(). |
setPixel(x, y, r, g, b) |
Set one LED by RGB components. |
setPixel(x, y, color) |
Set one LED by packed uint32_t color. |
getPixel(x, y) |
Read back stored color of one LED. |
fill(r, g, b) |
Fill entire grid with one RGB color. |
fill(color) |
Fill entire grid with packed color. |
show() |
Push all changes to hardware (inherited). |
clear() |
Blank all LEDs (inherited). |
setBrightness(b) |
Global brightness 0–255 (inherited). |
Color(r, g, b) |
Pack RGB into uint32_t — static helper (inherited). |
xyToIndex(x, y) |
Coordinate → linear LED index, 0xFFFF if out of range. |
(0, 0)is the top-left corner. X increases to the right, Y increases downward.
- /src — source files for the library (
.h&.cpp) - /src/libs — bundled Soldered WS2812 and Adafruit NeoPixel drivers
- /examples — ready-to-run Arduino sketches
- keywords.txt — syntax highlighting for the Arduino IDE
- library.properties — Arduino Library Manager metadata
Access Arduino library documentation here.
The library is compatible with board & microcontroller families shown in green below:
